Application Areas：

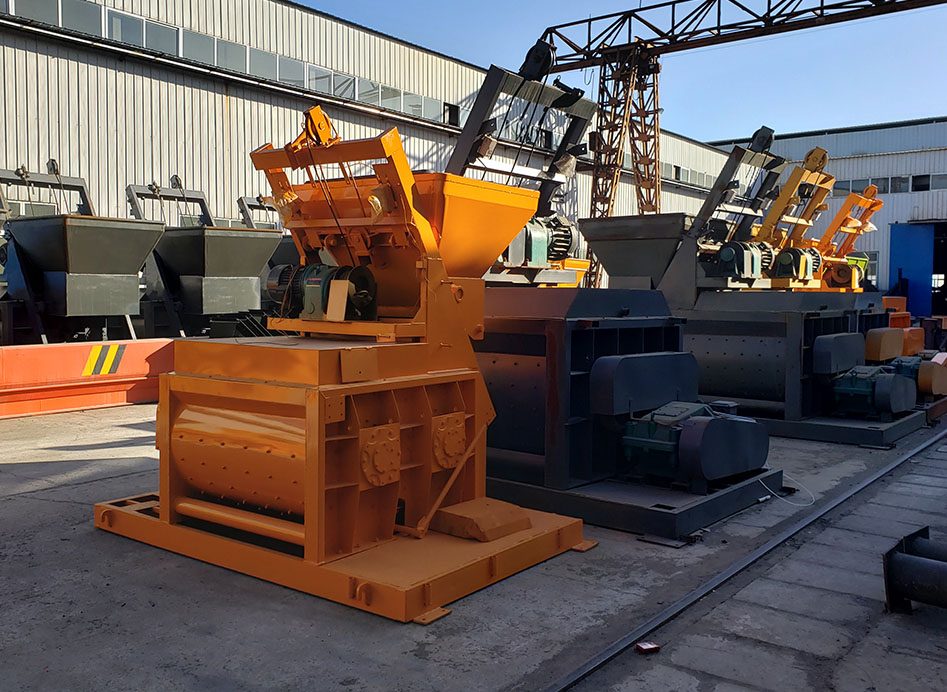

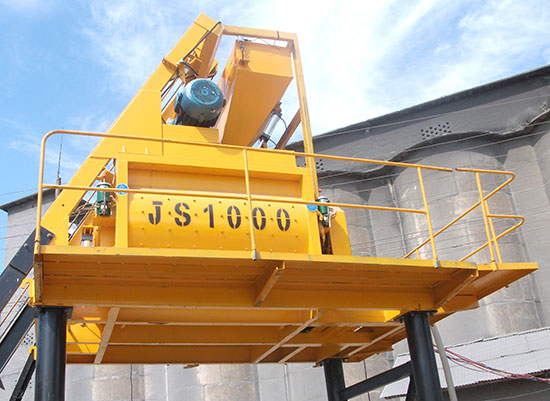

JS1000 forced concrete mixer is the advanced ideal construction equipment model in domestic and abroad.The liners & blades have the advantages of long service life, easily maintenance.Suitable for mixing plastic, dry hard, light aggregate concrete and various mortars and mortars.This mixer adopts motorized discharge method, can use together with tipper car,dumper truck or mixer truck.
1. The electric lubricating oil pump can use NLGI II or III lubricating oil, so that the shaft end seal is better and more fuel efficient;
2. A variety of knife Angle to meet any needs of customers, stirring quality is better;
3. The collapse of concrete in the mixer can be monitored and changed at any time, providing guarantee for users to produce high-quality concrete;
4. The scientific design concept and reliable experimental data minimize the friction and impact of the material, make the material flow more reasonable, greatly shorten the mixing time, improve the mixing efficiency and reduce the mixing energy consumption.
The concrete mixer is equipped with a tooth ring arranged around the drum body through the power mechanism connected with the transmission mechanism and the drum driven by the transmission mechanism, and the gear meshing with the tooth ring is arranged on the drive shaft. The utility model has simple and reasonable structure, and can effectively overcome the slipping phenomenon between the support wheel and the mixer drum when the gear and the tooth ring are engaged. The transmission mechanism can further ensure the elimination of slippage between the support wheel and the mixer drum.
Project | Discharge capacity | Feed capacity | Theoretical productivity | Maximum granule of aggregate （Lithotripsy/Pebble） | Speed of mixing blade | Power of agitator | Improve motor power | Pump motor power | Shape size （Length, width and height） | |
JS1000 | 1000L | 1600L | ≤60m³/h | ≤60/80 | 19.5（R/min） | 2×8（number） | 37/18.5kw×2 | YEZ160L-4 Model 7.5KW | 80JDB-45 2.2KW | 4320×2200 ×3300 |
