Application Areas：

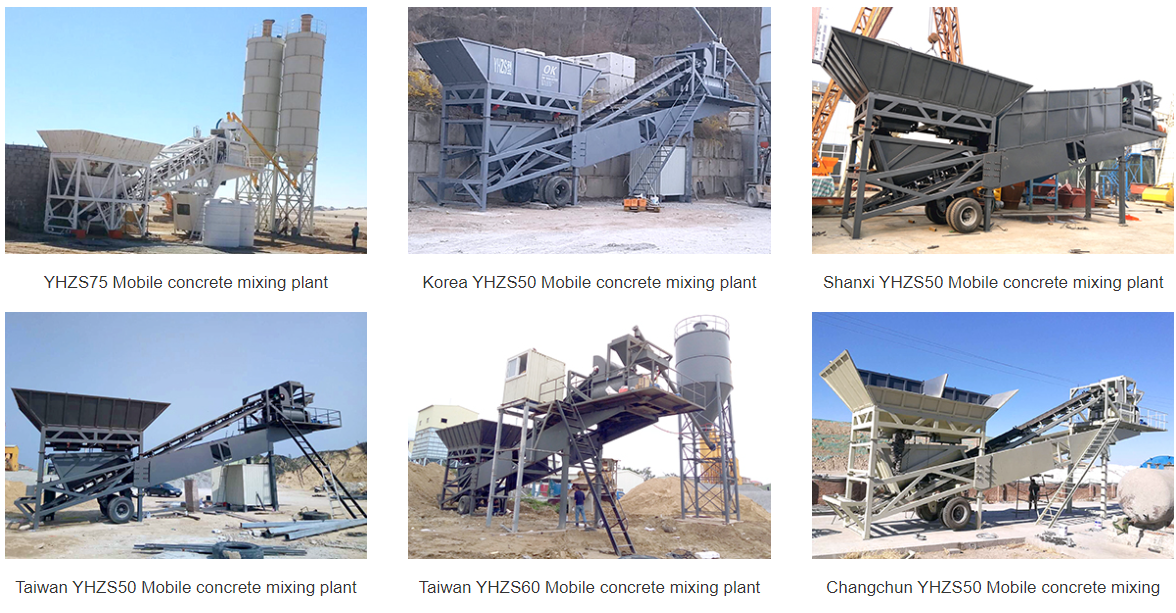

YHZS series mobile concrete mixing plant is a concrete mixing plant designed and developed by Zhengzhou Jianxin for users with short construction period, long construction line and frequent transition. The model is compact, small footprint and easy to

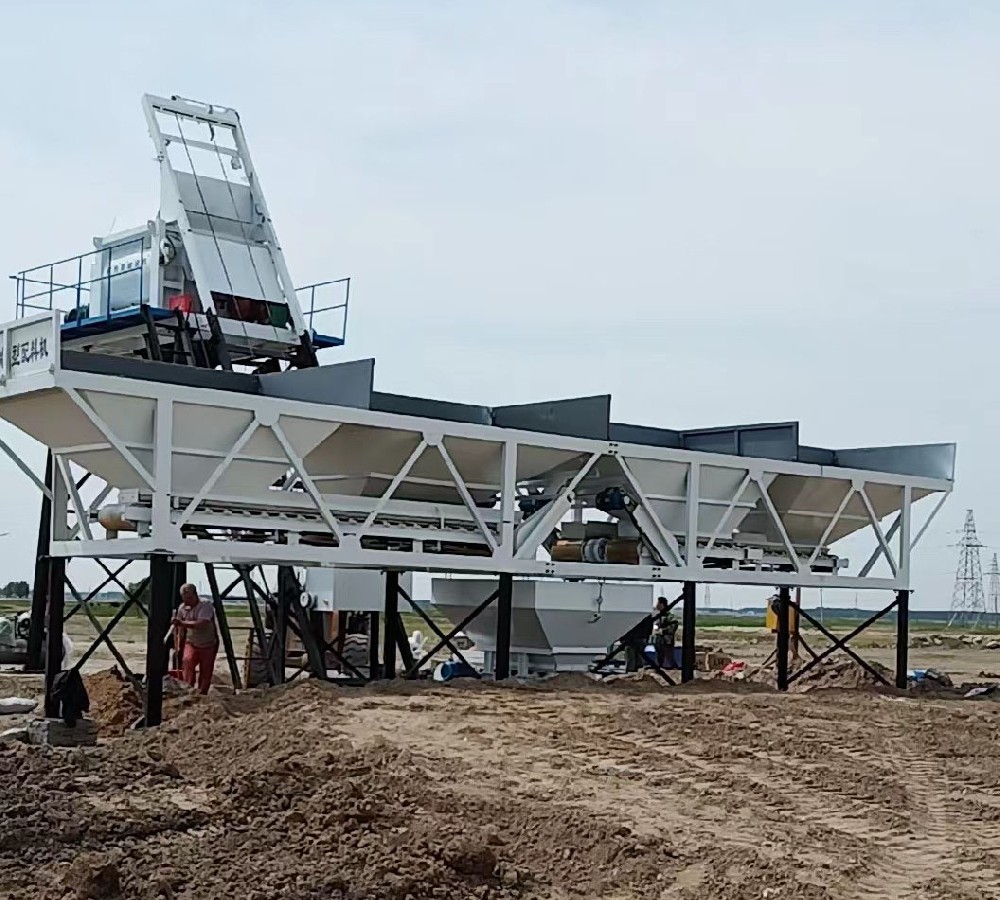

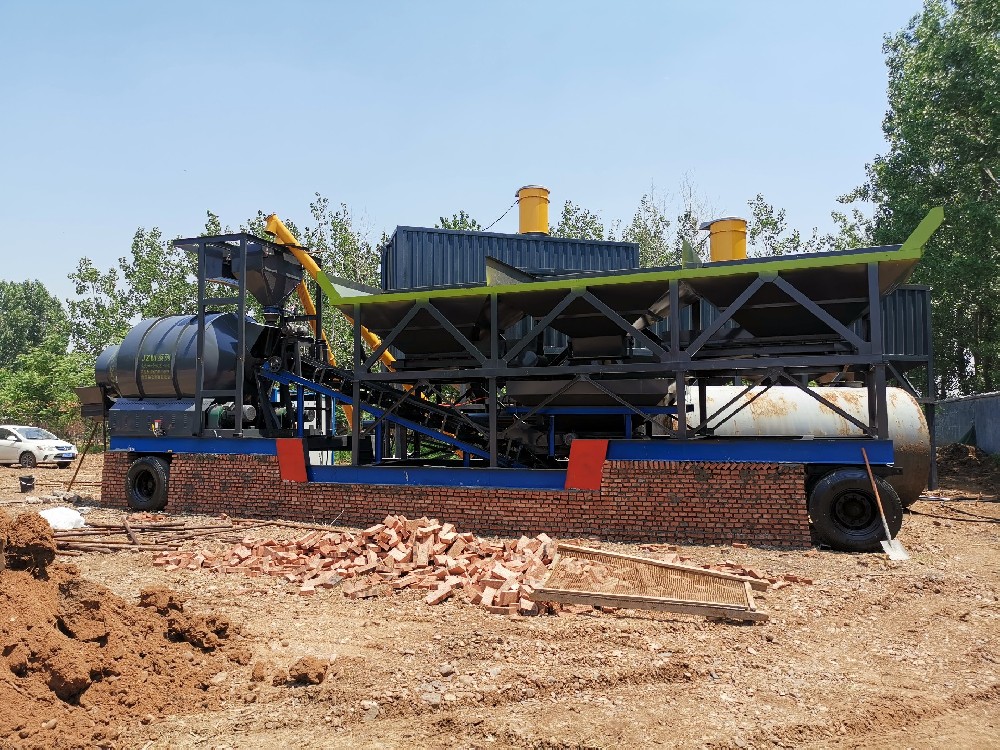

The YHZS50 mobile concrete mixing plant is a brand new type of ramming and stirring equipment that can be hung and moved. Its structure is novel, unique, compact and simple. With a cradle unit, a variety of operations including aggregate, weighing, conveying, and stirring are integrated, and the overall mobility is excellent. It absorbs many new technologies both at home and abroad in terms of performance. It is accurate and reliable in weighing, even and efficient in weighing, fast and clean in conveying, easy to operate and easy to move, and safe and reliable in hanging. It is the best in mobile construction of highways, bridges, ports, and hydropower projects. The best models.
1. The whole set of equipment has a compact structure, which concentrates the loading, weighing, mixing and other processes of concrete production in a single towing unit;
2. The man-machine operation interface is simple and clear, stable and reliable, suitable for all kinds of harsh environments;

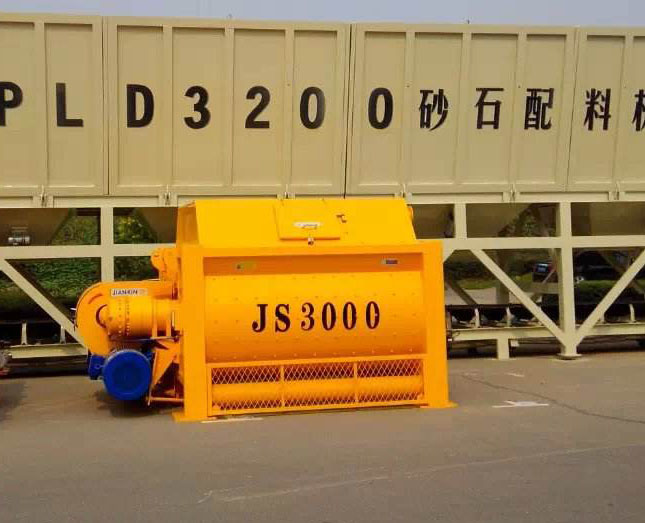

3. The use of double horizontal shaft forced mixer, strong continuous working ability, mixing uniform and fast, suitable for concrete demand point multi-line construction.
4. Small footprint, quick installation. 2-3 days to complete the installation and put into production, easy to disassemble, 1 day to complete the disassembly work.
YHZS50 mobile concrete mixing plant is a new type of concrete mixing equipment that can be supported and moved. Its structure is novel, unique, compact and simple. With a single supporting unit to concentrate aggregate, weighing, conveying, mixing and other operations in one body, the overall mobility is excellent. The performance absorbs a number of new technologies at home and abroad, weighing accurate and reliable, stirring evenly and efficiently, conveying fast and clean, easy to operate, easy to move, safe and reliable, is the best optimal model for the mobile construction of highways, Bridges, ports, hydropower and other projects.
project | Theoretical productivity | Mixer | Batching machine | Conveyer capacity of belt conveyer | Drag speed | Wheelbase (lateral) | Turning radius | Total power | Unloading height |
YHZS50 | 50m³/h | JS1000 | PLD1600 | 400 | 15 | 3400 | 15 | 60 | 4.0 |
