Application Areas:
It is widely used in the construction of basic materials such as high-grade highways, urban roads, airstrips, docks, sports fields, water conservancy and hydropower projects.
Application Areas:
It is widely used in the construction of basic materials such as high-grade highways, urban roads, airstrips, docks, sports fields, water conservancy and hydropower projects.

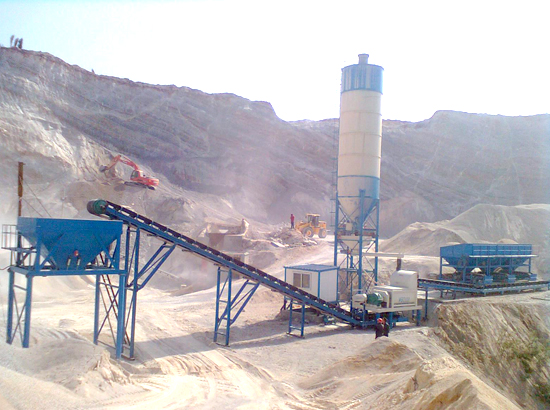

The made WBZ300 Stabilized Soil Mixing Station (mixing plant) production line is an economical and practical stable soil mixing plant with an output of 300 tons per hour and is widely adapted to high-grade highways, urban roads, airstrips, and piers. Base materials such as sports grounds are needed for construction. The product structure is mature, the specifications are complete, the performance quality is stable and reliable. Since its since 1991, it has enjoyed a high reputation in the market with its strong technical foundation, superior product quality, satisfactory customer service, and products throughout the country. It shares the nearly 80% of the market . And it’s exported to Philippines. Afghanistan. Africa and other countries.
1, the equipment can mix cement stabilized soil, lime stabilized soil, sandstabilized soil and other basic stable materials.
2, the equipment is suitable for high-grade highway, airport, railway,municipal construction, the production of a variety of different specificationsof stable soil base materials.
3, the use of no liner plate double horizontal shaft forced mixing host, so that the material in the "boiling" state of rapid advancement, high productivity, uniform mixing production process continuous stability, and no need to replace the liner, long service life, low maintenance costs.
4, single motor drive reducer, big gear synchronous transmission, stable and reliable work, shock vibration resistance, strong anti-overload ability, long service life.
5, the unique form of water supply, to ensure that the water supply is uniform, stable and effective, water mist can effectively reduce dust pollution, effectively remove stable soil agglomeration.
6, the special powder big mouth screw feeder to avoid the previous impeller feeder moisture easily blocked phenomenon, so that the dust measurement is more reliable, stable, uniform and continuous, can effectively reduce the waste of powder and scrap finished materials, stable material cost control.
7, a variety of powder supply forms can be selected: manual unpacking cement or bulk cement can be used, or bucket elevator.
8, the use of computer speed regulation or frequency conversion electronic speed regulation, the material supply is uniform and continuous and reliable, strong anti-interference ability, accurate ratio, simple operation.
9, the system has: shutdown, boot process management and status detection function, fault alarm and overload alarm and undervoltage protection function, manual, semi-automatic, automatic various forms of operation, can store ratio, output and other data, and can output and print statistical reports. It provides strong support for site management, scheduling and monitoring.
10, finished silo door can be single open, double open, easy to use. The volume is 6, 8, 10m³ There are three to choose from.
11, fully sealed, with air conditioning control room, improve the operator's comfort, reduce the intensity of operation labor.
WBZ300 stabilized soil mixing station is a volumetric measurement variable frequency speed regulating stabilized soil mixing station, the stabilized soil mixing station equipment is an economic and practical stabilized soil mixing equipment, rated productivity of 400 tons per hour, the use of computer dynamic and measurement (or volume measurement), with accurate measurement, high productivity, stable performance and quality. The mixing station is suitable for continuous operation with large flow rate, and is mainly used for mixing the basic stable materials of constructing high-grade highways, urban roads, airports, ports and other projects.
Project | Maximum productivity | Measurement method | Speed regulation mode | control mode | Quantify precision | Power | Weight | |||
WBZ300 | 300t/h | Volume measurement Computer measurement | frequency control Electromagnetic speed regulation | automatic | Manual | aggregate | Powder | water | 102.7kw | 39t |
