PLD2400 concrete batching machine
Feed size
Capacity
Power
PLD2400 concrete batching machine
Product Description

  PLD2400 batching machine is a new type of concrete batching machine, which is improved and innovated on the basis of the use and feedback of customers for many years. The batching machine has accurate ratio and high working efficiency, which is recognized and loved by customers.


Technical Features

  1. Head-up belt scale design, reduce the loading height, save civil construction costs;

  2. Customized control system according to industry needs, easy to use;

  3. The overall structure is reasonable, the stiffness is good, and the appearance is classic;

  4. Can weigh 4 kinds of aggregates at the same time, weighing time is short, high efficiency.


Working Principle

  Concrete batching machine, batching machine, sand and gravel automatic batching machine, is a kind of material for a variety of materials such as: The automatic equipment of quantitative distribution of sand and gravel is mainly used in mixing station and concrete construction industry to replace manual scale or volume measurement, which has the characteristics of high measurement accuracy, high distribution efficiency and high degree of automation, and is one of the main parts of the complete set of equipment of automatic concrete mixing station.

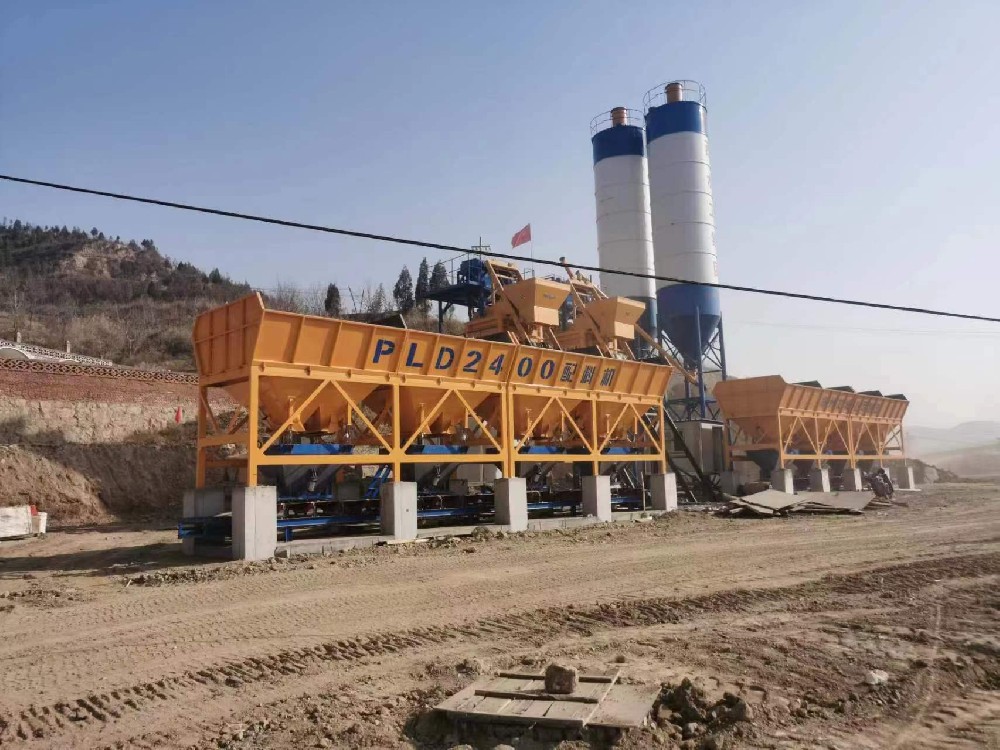

Product Gallery
Performance parameter

model

Weighing hopper capacity
(L)

Storage hopper capacity

productivity
/h)

Batching accuracy

Weighing value
(kg)

Number of ingredients

Feeding height
(mm)

Feeding belt speed
(m/s)

power
(kw)

Total capacity
(kg)

Overall dimension
(length * width * height)
(mm)

PLD800

800L

2×1.5m³

48/h

±2%

2000

2-3species

2400

3

3×3

2450

6000×2000
×3020

PLD1200

1200L

4×2.5m³

56m³/h

±2%

3000

2-4species

3000

1

5×3

4500

9500×2200×
3260

PLD1600

1600L

4×5m³

75m³/h

±2%

3000

2-5species

2900

1

5×3

5600

12000×2200×
3260

PLD2400

2400L

4×10m³

120m³/h

±2%

4000

2-5species

2900

1.6

11

85000

10000×3000×
4000

PLD3200

3200L

4×18m³

160m³/h

±2%

5000

2-5species

2300

1.6

11

10500

14500×3000×
4600

PLD4800

4800L

4×25m³

160m³/h

±2%

8000

2-5species

2300

1.25

11

14000

15520×3900×
5090
